Product Details

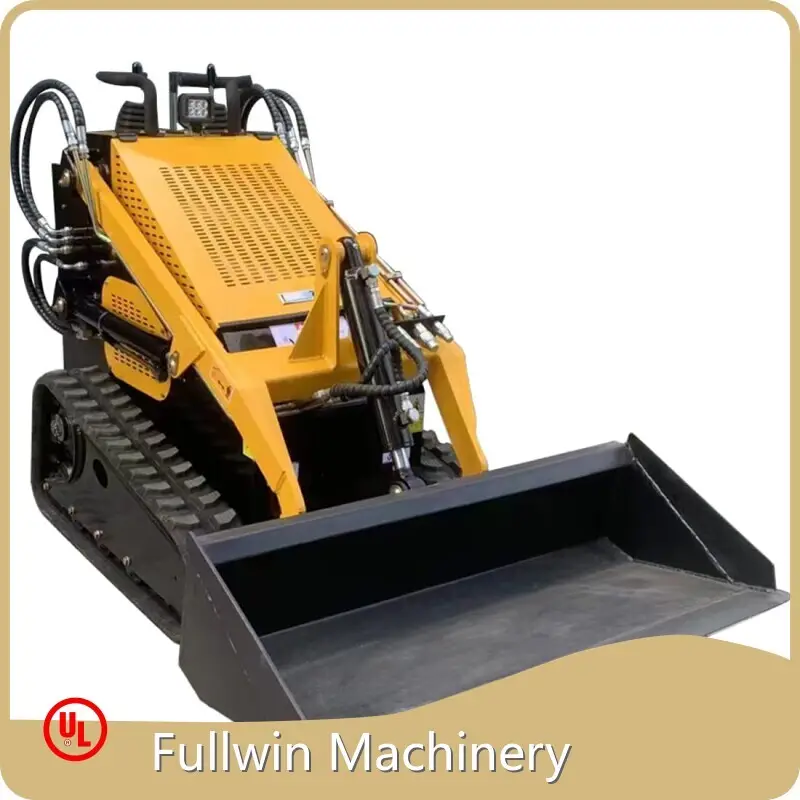

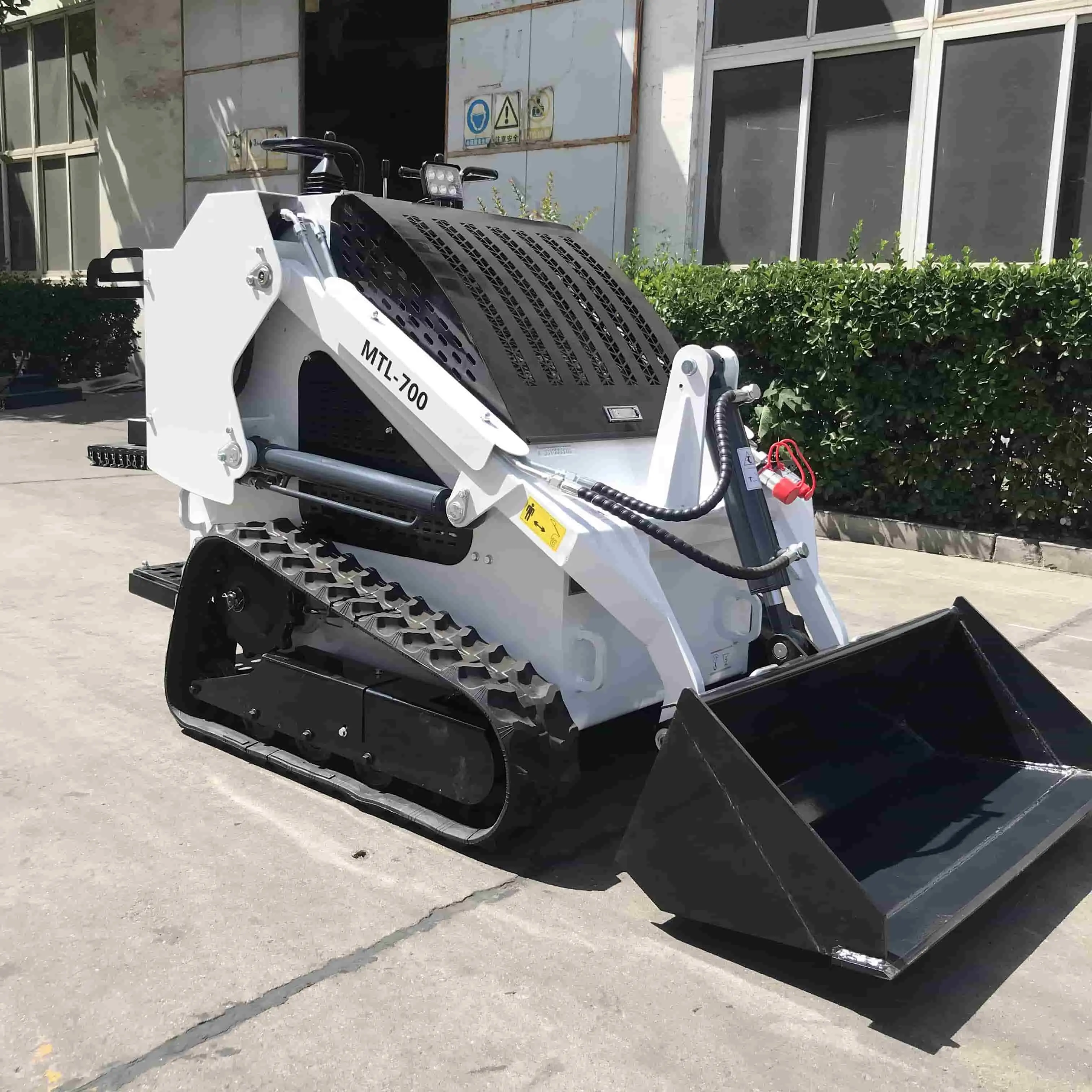

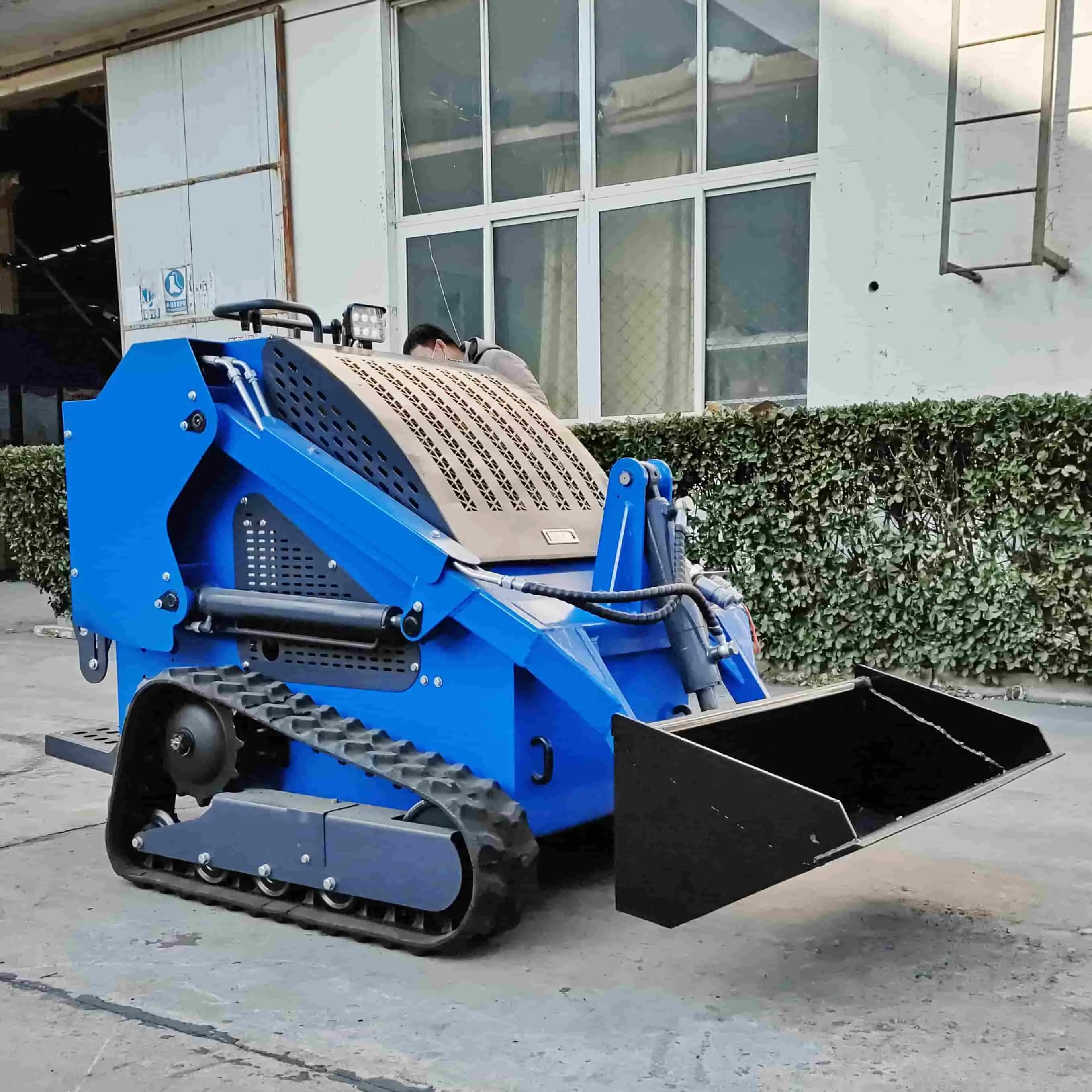

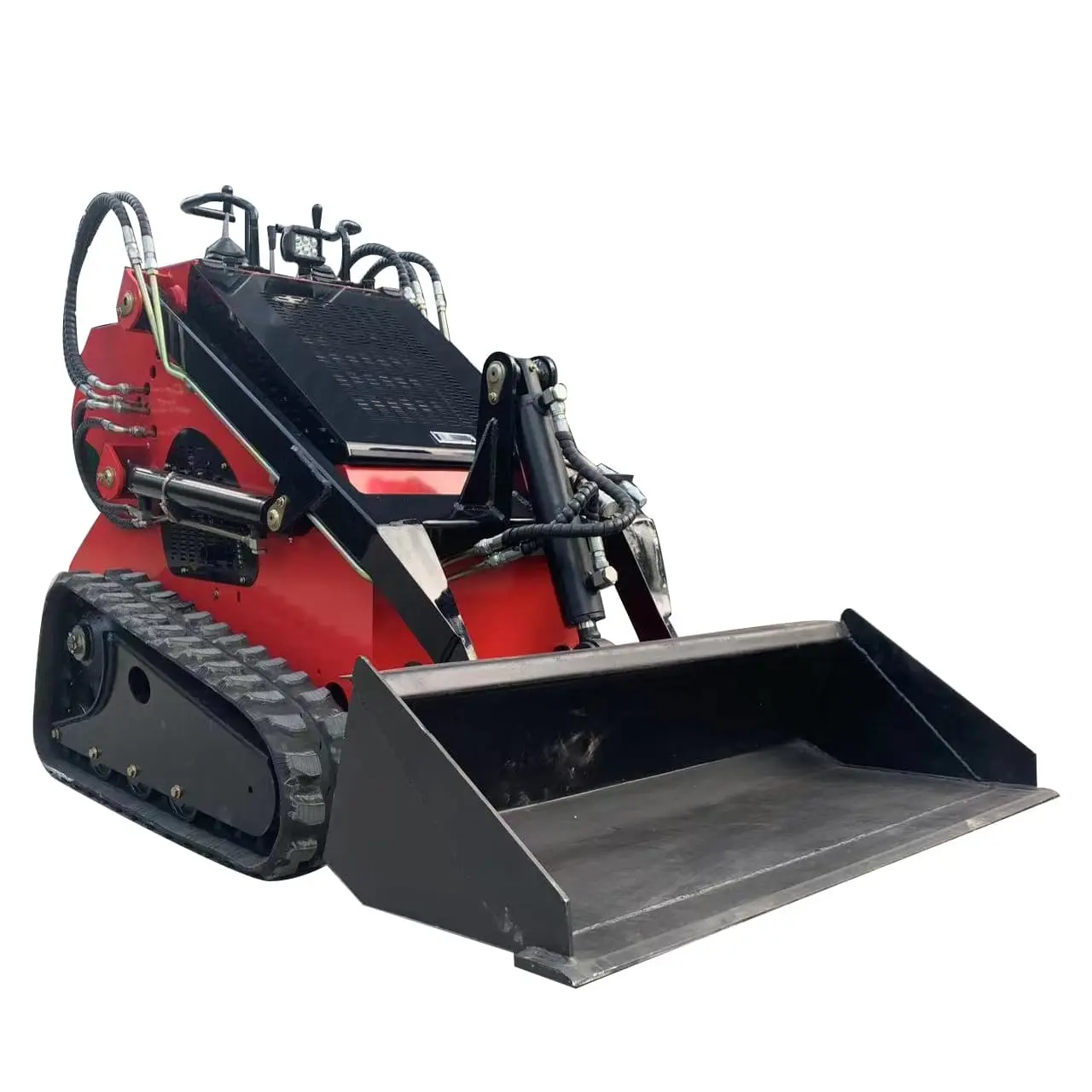

The FY700R Mini Skid Steer Loader is a powerful and versatile machine ideal for road construction, municipal maintenance, port handling, and garden maintenance. With a strong hydraulic system and reliable engine, it features tires with exceptional wear resistance, suitable for diverse working conditions. Its ergonomic design and user-friendly controls enhance operational efficiency, boosting productivity on the job site.
Product Details
Product Parameters
|
MODEL |
FY700R |
|
Gasoline Engine (EPA Certified) |
Briggs&Stratton / RATO, 17.2KW/23HP |
|
Diesel Engine (Euro5 Certified) |
KOOP, 20KW/27HP |
|
No. of Cylinders |
2 |
|
No. of Pumps |
2 Pump Hydraulic System |
|
Displacement |
639cc |
|
Type |
Wheel/Track |
|
Dimensions (L*W*H) |
1680*1080*1350mm (Wheel Version) 1680*1000*1350mm (Track Version) |
|
Machine Weight |
1000KG |
|
Operating Weight |
1400KG |
|
Rated Operating Capacity |
400KG |
|
Standard Bucket Capacity |
0.12m³ |
|
Max. Lift Force |
450KN |
|
Travel Speed |
0-6km/h |
|
Length with Standard Bucket |
2206mm |
|
Rollback of Bucket on Ground |
27° |
|
Max. Dump Height |
1510mm |
|
Height to Bottom of Level Bucket |
1810mm |
|
Height to Bucket Hinge Pin |
1870mm |
|
Max. Operating Height |
2450mm |
|
Overall Height |
1350mm |
|
Ground Clearance |
150mm |
|
Dump Reach |
450mm |
|
Dump Angle |
34° |
|
Rollback of Bucket at Full Height |
114° |
|
Wheelbase |
850mm |
|
Rear Axle to Bumper |
280mm |
|
Working System Pressure |
17-21MPa |
|
Fuel Tank Capacity |
25L |
|
Tread Width |
720mm |
