Small Excavator Fullwin Or OEM Brand by Fullwin Machinery
Product details of the small excavator
Product Information
The design of Fullwin Machinery small excavator is simple but practical. Owing to small excavator, Qingdao Fullwin Machinery Co.,Ltd is a company which is famous for it. The product is believed to achieve great market application prospect.
Product Introduction

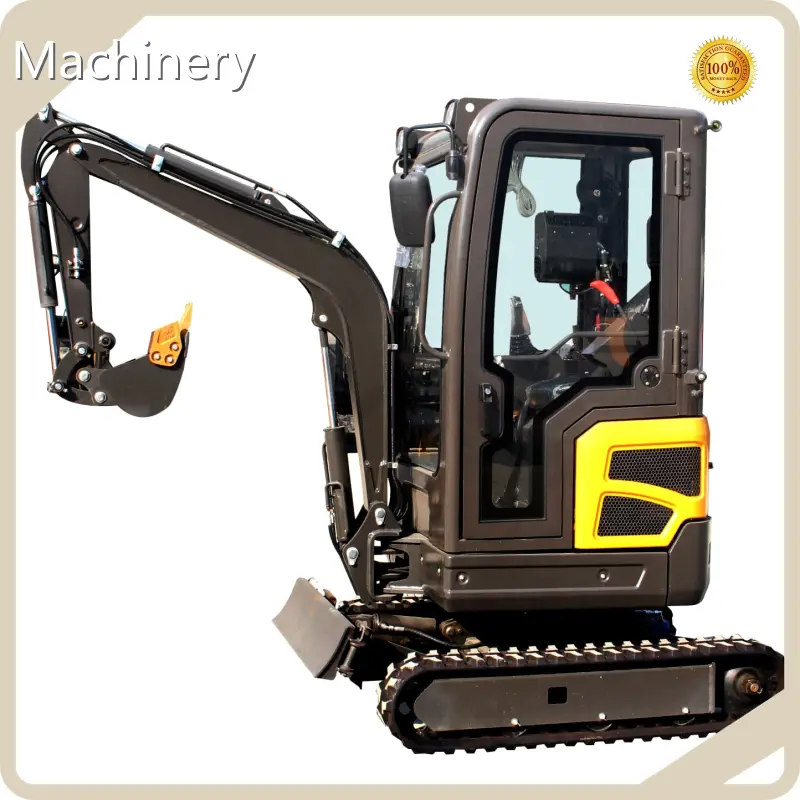

FW18J Diesel Engine Excavator is a 1.8-ton small excavator that stands out in the market for its low price, lightweight body and convenient maintenance. It is widely loved by users for its compact design, high flexibility and excellent working efficiency. The excavator is widely used in urban and rural engineering projects, including road construction, building foundation excavation, water conservancy projects, mining, etc., and can easily handle the loading of loose materials such as gravel and coal.
FW18J is equipped with high-end configurations such as seamless integral molding design, standard swing arm, imported engine and pump valve motor, heat-insulated and sound-insulated cab, zero tail swing design, and widened crawler tracks to enhance performance in soft terrain. The humanized cab design includes one-button start, radio, cup holder, comfortable seat and headrest armrest, which enhances the control experience. At the same time, the concealed hydraulic oil tank and diesel tank design, as well as the cast iron counterweight block, enhance the safety and stability of the equipment, making it a powerful assistant in various engineering projects.
Product Details
Product Parameters
|
FW18J specifcation |
||
|
The machine operating weight |
1650kg |
|
|
Bucket capcity |
0.025m³ |
|
|
Engine model |
Kubota D722 |
|
|
Type |
Three-cylinder, in-line, water-cooled, four-stroke, mechanical pump, naturally aspirated |
|
|
Rated power |
10.4kW/2500rpm |
|
|
Max torque |
45Nm/2500rpm |
|
|
Displacement |
0.719L |
|
|
Main performance |
||
|
walking speed |
1.8km/h |
2.3/4.5Km/h |
|
Rotation speed |
12-13 |
|
|
Gradeability |
58%（30°） |
|
|
Ground press |
23kPa |
|
|
Bucket digging force |
9kN |
|
|
Arm Digging Force |
5.5kN |
|
|
Oil and coolant capacity |
||
|
fuel tank |
14.5L |
|
|
hydraulic oil tank |
14.5L |
|
|
engine oil |
3.2L |
|
|
Working range |
||
|
Max digging height（mm） |
2955 |
|
|
Max unloading height |
2077 |
|
|
Maximum digging depth |
2017 |
|
|
Maximum vertical depth（mm） |
1610 |
|
|
Maximum digging radius |
3529 |
|
|
Tail radius（mm） |
655 |
|
|
Minimum turning radius |
1812 |
|
|
Bulldozer lift maximum |
236 |
|
|
Maximum sinking depth |
229 |
|
|
Swing arm deflection Angle |
50° |
|
|
Swing arm deflection Angle tothe right |
52° |
|
|
Whole machine size |
||
|
Overall length |
3329 |
|
|
Overall width |
990 |
|
|
Overall height（mm） |
2267 |
|
|
Dozer board height（mm） |
210 |
|
|
Track plate width（mm） |
200 |
|
|
Track gauge（mm） |
790（1100） |
|
|
Track grounding length（mm） |
1190 |
|
|
Minimum ground clearance（mm） |
153 |
|
|
Tail swing radius（mm） |
655 |
|
Company Feature
• Fullwin Machinery's high-quality mini excavator,mini skid steer loader,forklift and attachment etc are favored by many foreign customers. They are mainly exported to many countries and regions including br /> • Fullwin Machinery was founded in After the development of years, we have become a leader in the industry.
• Our company has a great team with strong professional ability, rich business experience, high efficiency and strong creativity, which provides a huge advantage for the continuous innovation and development of our products.
• Under the general trend of 'Internet +', our company is involved in network marketing. In order to meet the needs of different consumer groups as much as possible, we provide consumers with more comprehensive and professional service.
Feel free to contact Fullwin Machinery, and your good suggestions are welcome!
