Small Skid Steer Loader 10-30 Days Based on Order Quantity by Fullwin Machinery
Product details of the small skid steer loader
Quick Overview
Fullwin Machinery small skid steer loader is manufactured by dedicated workforces. This product has comprehensive functionality and stable performance thanks to the quality inspections conducted by our dedicated team. Putting customer service first has been always a focus of Fullwin Machinery.
Product Description
small skid steer loader has the following advantages over other products in the same category.
Product Introduction

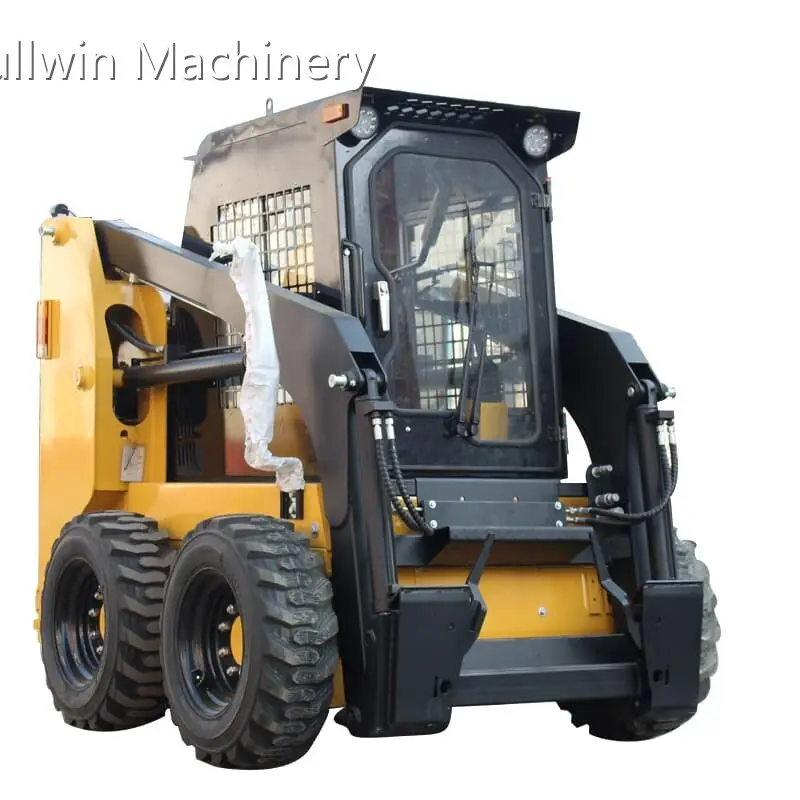

The FY45 mini skid loader stands out from the crowd with its extraordinary lifting capacity and excellent traction. It can easily cope with various operational challenges and demonstrate extraordinary work efficiency. Its spacious cab is matched with comfortable seats and combined with a user-friendly operating interface, so you can enjoy a comfortable experience even after long hours of operation, making work no longer tiring. The powerful combination of Danfoss motors from the United States and hydraulic pumps made by Seiko from Italy has set a new benchmark in power and durability for the FY45, ensuring that every component meets top quality standards. What is more worth mentioning is that its rich optional accessories design makes the FY45 a true all-rounder. Whether it is garden maintenance, construction sites or agricultural operations, it can be easily handled, redefining versatility in the industry. Choosing the FY45 means choosing the perfect combination of efficiency, comfort and quality, making each of your projects more efficient and leading the new trend in the industry.
Product Details
Product Parameters
|
FY45 Mini Excavator whole Specifications |
||
|
Rated operating capacity(kg) |
700 |
|
|
Tipping load(kg) |
1400 |
|
|
Bucket capacity(m3) |
0.4 |
|
|
Operationg weight(kg) |
2700 |
|
|
Max. travel speed(km/h) |
12 |
|
|
Hydraulic pump flow(L/min) |
75 |
|
|
Fuel tank capacity(L) |
80 |
|
|
Tires |
10-16.5 |
|
|
Overall dimensions(mm) |
3420×1740×2140 |
|
|
Dimension |
||
|
Height at maximum extension(mm) |
3980 |
|
|
Height to bucket hinge pin(mm) |
3080 |
|
|
Width with bucket(mm) |
1740 |
|
|
Track width(mm) |
1450 |
|
|
Wheelbase(mm) |
991 |
|
|
Ground clearance(mm) |
185 |
|
|
Dump angle |
40° |
|
|
Dumping height(mm) |
2380 |
|
|
Maximum reach(mm) |
700 |
|
|
Engine |
||
|
Maker/Model |
XINCHAI 490 |
|
|
Net power |
37KW/2500rpm |
|
|
Type |
4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine |
|
|
Standard |
||
|
Open-type operator cab |
Hand control system(Mechanical type) |
|
|
Standard bucket |
Auxiliary hydraulic couplers |
|
|
Optional |
||
|
Enclosed operator cab with A/C |
Cab fitted with a heater as standard |
|
|
Hydraulic joystick controls |
|
|
|
Attachments： |
Backhoe,Breaker,Angle blade,Auger,Sweeper,Pallet fork, Combination bucket,Mower,Asphalt cutter,and More |
|
Company Advantages
Qingdao Fullwin Machinery Co.,Ltd is known as the backbone of the small skid steer loader field. Adopted by high-quality materials, our small skid steer loader are very welcome among customers. Qingdao Fullwin Machinery Co.,Ltd is pursuing innovations that are critical to both our customers and our company. Check it!
We are sincerely looking forward to establishing a long-term cooperation with all customers!
