Wholesale Mini Home Excavator
Product details of the mini home excavator
Product Description
The material of mini home excavator is safe even for children. Our commitment to quality ensures that the product is always at the best quality. It is hard to develop Fullwin Machinery without the assurance of quality of mini home excavator.
Product Introduction

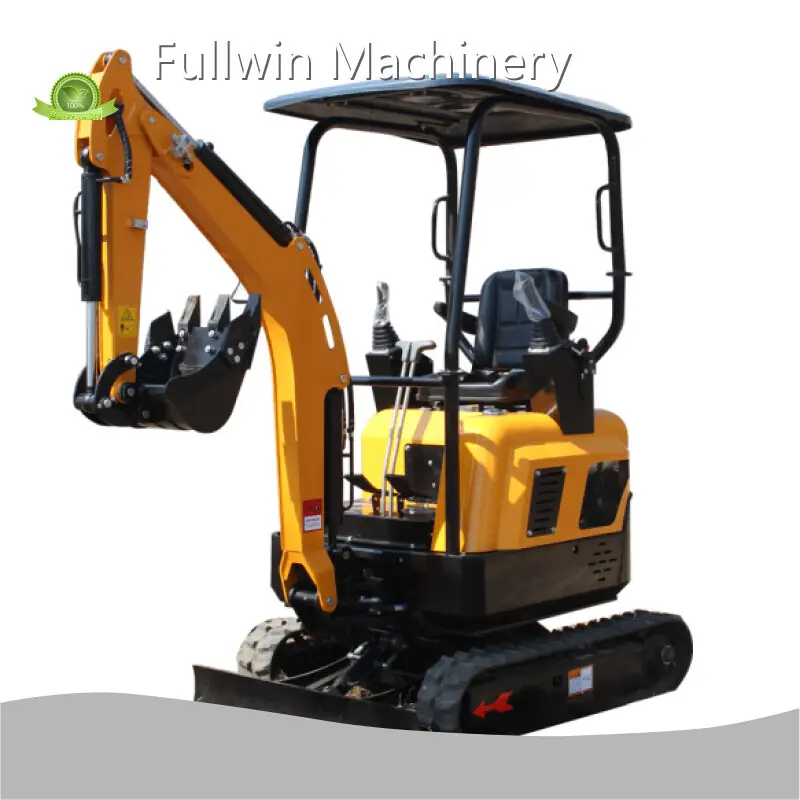

FW18T Mini Excavator embodies a cutting-edge blend of ergonomic design, advanced technology, and superior performance. It boasts flip-up joysticks for seamless access, an LCD display for intuitive information display, and an upgraded seat with armrests for operator comfort. With a complete counterweight and widened 1.1m chassis, the excavator ensures steady operation. Its upper boom cylinder design prevents damage during arm tightening, while foldable foot pedals maximize footroom. The engine is powerful yet eco-friendly, meeting the highest European standards for performance, noise, and emissions. Enhanced crawler tracks ensure durability and longevity, while the hydraulic system's layout simplifies maintenance. Intelligent monitoring instruments and simple liner-type construction further ease maintenance and installation. Equipped with world-class components in pneumatic, electric, and operational parts, FW18T operates with high automation and intelligence, emitting zero pollution. Additionally, its compatibility with air conveyor and filling machine systems streamlines production processes.
Product Details
Product Parameters
|
FW18J specifcation |
||
|
The machine operating weight |
1650kg |
|
|
Bucket capcity |
0.025m³ |
|
|
Engine model |
Kubota D722 |
|
|
Type |
Three-cylinder, in-line, water-cooled, four-stroke, mechanical pump, naturally aspirated |
|
|
Rated power |
10.4kW/2500rpm |
|
|
Max torque |
45Nm/2500rpm |
|
|
Displacement |
0.719L |
|
|
Main performance |
||
|
walking speed |
1.8km/h |
2.3/4.5Km/h |
|
Rotation speed |
12-13 |
|
|
Gradeability |
58%（30°） |
|
|
Ground press |
23kPa |
|
|
Bucket digging force |
9kN |
|
|
Arm Digging Force |
5.5kN |
|
|
Oil and coolant capacity |
||
|
fuel tank |
14.5L |
|
|
hydraulic oil tank |
14.5L |
|
|
engine oil |
3.2L |
|
|
Working range |
||
|
Max digging height（mm） |
2955 |
|
|
Max unloading height |
2077 |
|
|
Maximum digging depth |
2017 |
|
|
Maximum vertical depth（mm） |
1610 |
|
|
Maximum digging radius |
3529 |
|
|
Tail radius（mm） |
655 |
|
|
Minimum turning radius |
1812 |
|
|
Bulldozer lift maximum |
236 |
|
|
Maximum sinking depth |
229 |
|
|
Swing arm deflection Angle |
50° |
|
|
Swing arm deflection Angle tothe right |
52° |
|
|
Whole machine size |
||
|
Overall length |
3329 |
|
|
Overall width |
990 |
|
|
Overall height（mm） |
2267 |
|
|
Dozer board height（mm） |
210 |
|
|
Track plate width（mm） |
200 |
|
|
Track gauge（mm） |
790（1100） |
|
|
Track grounding length（mm） |
1190 |
|
|
Minimum ground clearance（mm） |
153 |
|
|
Tail swing radius（mm） |
655 |
|
Company Feature
• In order to develop continuously, our company has a group of professional personnel. Based on the professional techniques and high quality, they do well in developing products and providing after-sales service.
• While selling products, our company also provides corresponding after-sales services for consumers to solve their worries.
• Good location advantages and developed transportation and infrastructure are conducive to long-term development.
• Fullwin Machinery has been through years of wind and rain since the establishment. Compared with other enterprises in the industry, we have more mature production technology. We are able to provide customers with better products and services.
• Our company has continuously expanded our sales market for many years. As a result, we have established a comprehensive marketing service system covering the whole country.
If you are interested in an electric equipment and want to know more detailed information and the specific price, feel free to contact Fullwin Machinery for consulting.
Qingdao Fullwin Machinery Co., Ltd.
