Mini Loader FY55J - - Fullwin Machinery
Company Advantages
· Fullwin Machinery mini loader is manufactured by our experts utilizing optimum quality raw materials with the help of advanced technology.
· It has more comprehensive and reliable functions compared with other products.
· Qingdao Fullwin Machinery Co.,Ltd has professional R&D team and trustworthy, convenient products.
Product Details

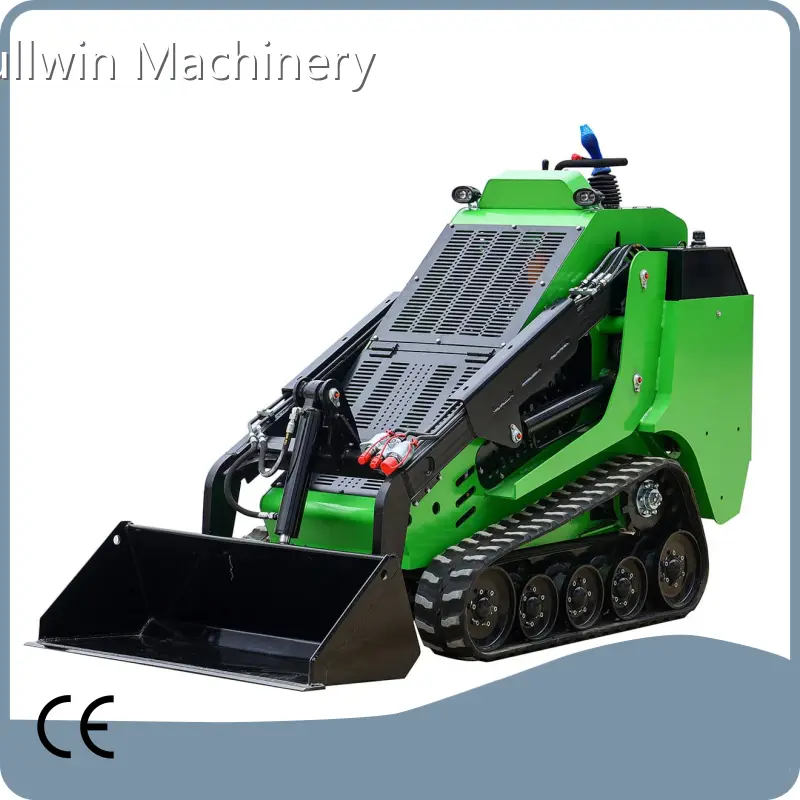

The FY55J control console is designed with user-friendliness in mind, enabling operators to learn how to use it effectively without the need for extensive and complex training sessions. This thoughtful design ensures that even those with limited experience can become proficient quickly. Additionally, users can select between Kubota and Perkins engines, which allows them to tailor their choice to meet their specific operational needs. This flexibility ensures optimal performance suited to various requirements. The console also provides operators with the ability to achieve precise control over hydraulic actuators, resulting in accurate operation and correct positioning. This level of control not only enhances productivity but also contributes to extending the overall lifespan of the equipment across a wide range of diverse operating environments. As a result, users can experience improved efficiency and reliability in their tasks.
Product Details
Product Parameters
|
FY55J Mini Skid Steer Loader Specifications |
|||||||
|
Overall Dimension (mm) |
1700*920*700 |
||||||
|
Weight (kg ) |
175 |
||||||
|
Max Trenching Depth (mm) |
900 |
||||||
|
Single Trenching Width (mm) |
155 |
||||||
|
Chain Rotary Speed (m/min) |
154 |
||||||
|
Max Working Height (mm) |
2420 |
||||||
|
Max Pin Height (mm) |
2099 |
||||||
|
Max Dump Height (mm) |
1617 |
||||||
|
Unloading Distance At Highest Position (mm) |
615 |
||||||
|
Bucket Swing Angle |
79° |
||||||
|
Bucket Unloading Angle |
36° |
||||||
|
Opening-closing Angle |
43° |
||||||
|
Angle Of Departure |
30° |
||||||
|
Total Height( mm) |
1607 |
||||||
|
The Height From The Ground (mm) |
300 |
||||||
|
Wheelbase(mm) |
1065 |
||||||
|
No Bucket Length(mm) |
2200 |
||||||
|
Total Width(mm) |
1033 |
||||||
|
Bucket Width(mm) |
1140 |
||||||
|
Total Length(mm) |
2752 |
||||||
|
Turning Radius (F) (mm) |
2198 |
||||||
|
Engine |
Model |
PERKINS 403J-11 |
|||||
|
Rated Power（KW/HP） |
18.5/25 |
||||||
|
Rotation speed（rpm） |
3000 |
||||||
|
Noise（Db） |
≤95 |
||||||
|
Hydraulic System |
System Pressure（Mpa） |
20 |
|||||
|
Working Time（s） |
Lifting |
Uninstall |
reduce |
||||
|
3.89 |
1.6 |
3.35 |
|||||
|
Configuration parameters |
Loading weight (Kg) |
300 |
|||||
|
Bucket capacity (m3) |
0.14 |
||||||
|
Maximum lifting force (Kg) |
1258 |
||||||
|
Walking speed(Km/h) |
0-8 |
||||||
|
Operating Weight (kg) |
1775 |
||||||
|
Machine weight (kg) |
1450 |
||||||
|
Main Pump |
Qty: 2 |
||||||
|
Main Pump Flow (L/min) |
24.5*2 |
||||||
|
Auxiliary Pump Flow (L/min) |
19.44 |
||||||
|
Auxiliary Pump |
Qty: 1 |
||||||
|
Main Valve |
Qty :4 |
||||||
Company Features
· Qingdao Fullwin Machinery Co.,Ltd is an enterprise which is professional in producing mini loader.
· In line with the international standard, what Fullwin Machinery manufactures is of high quality.
· Qingdao Fullwin Machinery Co.,Ltd always regards quality as the force for enhancing product competitiveness.
Product Comparison
The mini loader produced by Fullwin Machinery is better than the previous generation. The specific performance is as follows.
